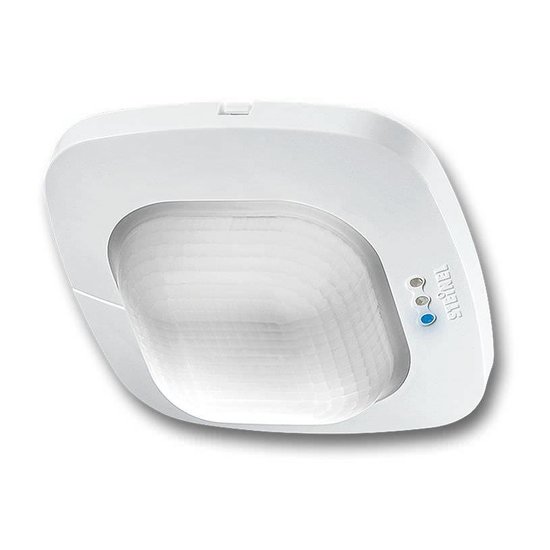

Presence detector 1-10V dimmable inside
Specifications presence detector 1-10V dimmable inside :
- Dimensions (H x B x D) : 120 x 120 x 70 mm
- Voltage : 230 V, 50 Hz/60 Hz
- Sensortype : Passive-infrared
- Applied inside buildings
- Installed on ceilings
- Recommended mounting height : 2.5-10 m
- Registration angle : 300° with 180° opening angle
- Mounting height : max. 4 m
- Square registation area presence : max. 8 x 8 m (64 m²)
- Square registation area radial : max. 8 x 8 m (64 m²)
- Square registation area tangential : max. 20 x 20 m (400 m²)
- Light canals light 1 - light 4
- Swith on/dimming, switch modus, settlement constant light, afterflow period
- Basic light power : permanent-ON, 1 – 255 min, 10 – 50 % = whole night
- Detection angle mecanical adjustable : yes
- Detector : 13 registration levels
- 4800 switch zones
- Comfort set up : Teach In (with optional remote control RC8)
- Set up light value : 10 – 1000 lux, ∞/daglicht
- Set up light value DIM :
- 100 - 1000lx ∞ / daylight
- Light switch power : 10-1000 lx

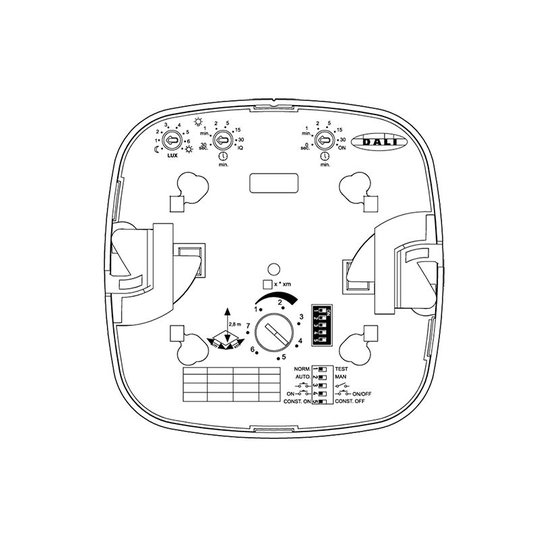

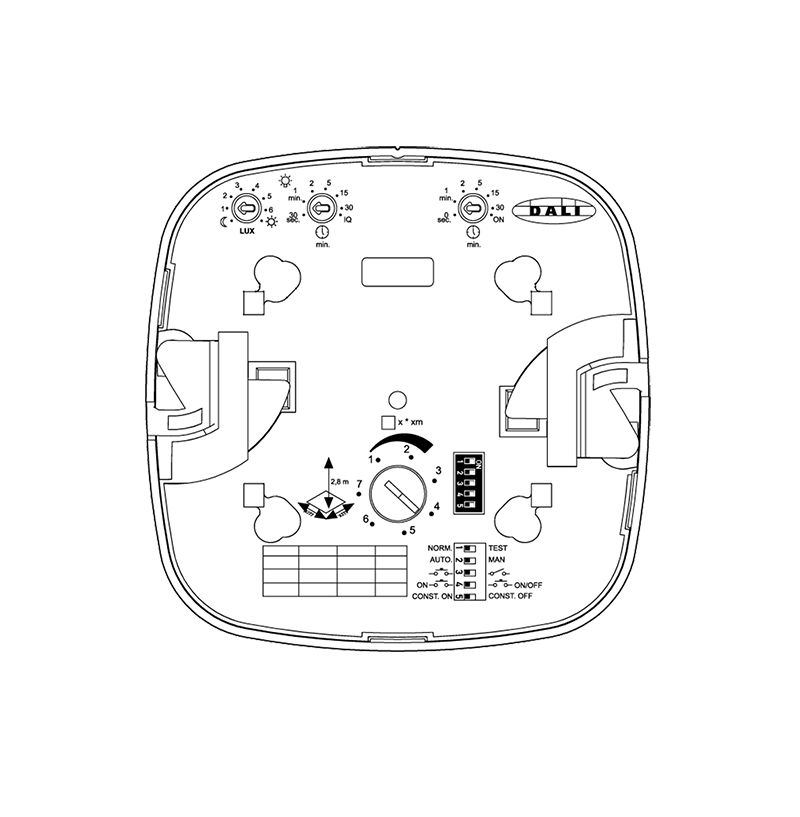

- Function via DIP-switchers :
- DIP 1: normal/test
- DIP 2: (half) automatic
- DIP 3: key/switch
- DIP 4: key ON/key ON-OFF
- DIP 5: regulation constant light ON-OFF
- Teach-function for light switch power : yes
- Parallelle switch :
- Master/slave
- Master/master
- Permanent lighting : switchable
- Output HLK : dependant on presence
- Output twilight switch : switch in relation to luminosity
- Protection (IP) : IP20
- UV-protected, can be varnished
Are you looking for a presence detector? This presence detector is 1-10V, is very practical and can be ordered at My Planet LED. We are one of the biggest online LED light shops and we deliver your order as well nationally as internationally. Our customers say we provide an excellent personalized service!
Features presence detector
This presence detector functions with infrared and is perfect to use in your office, meeting room or classroom.
It can be mounted on a height up to 10m and has a range of not less than 64m2. The registration area is square and can be mecanically adjusted.
The difference between a motion detector and a presence detector is :
A motion detector wil work on base of light level and mouvement. If after a certain time, there is no movement anymore (time is adjustable), the light goes out.
With a presence detector, the light will function as soon as there's someone in the room and it will continue to function as long as a person remains in the room.
A movement detector will for instance not detect that you're working on a pc, a presence detector will detect it.
This presence detector can be set up according to the light intensity (10-1000 lux). This makes it perfect to use in combination with LED panels.
It's also dimmable 1-10V (TRIAC) but can also be bought in DALI-version.
Standard, it's built-in but it can also be bought in built-up version.
Buy this presence detector at My Planet LED
In addition that this presence detector is useful, we guarantee a good after sales service. You will be informed about the status of your order. After payment, we treat your order. Once that the presence detector is in stock, we will inform you about your order.
Do you have more questions? Contact us by phone (+32) 57 466 866 or by mail ([email protected]) in order to obtain more information about this presence detector.
Let us help!
| Article number: | 49-000-003 |
| Colli: | 1 |
